Turbo Blower-Magnetic Bearing Turbo Blower
SmarTurbo is a group company focused on R&D, manufacturing and sales of high speed turbo blower, turbo compressor and turbo blower aerator. We have built the most comprehensive research and development system of high speed permanent-magnet synchronous motor, air bearing and magnetic bearing and aerodynamics for mass-production of turbo blower, turbo compressor and turbo blower aerator.
Turbo Blower Core Technology

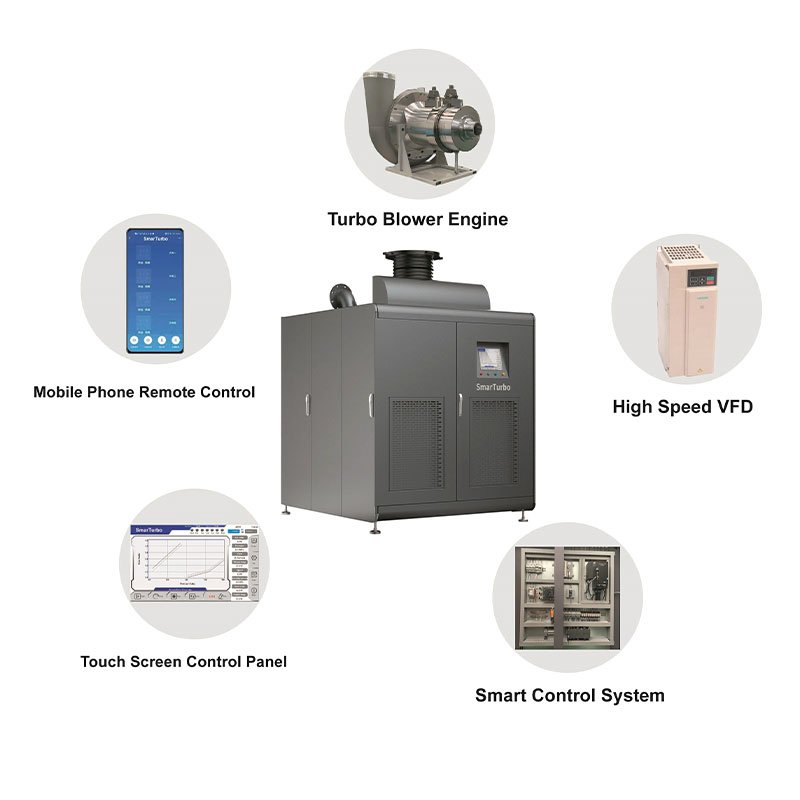

Turbo blower consist of core technology of Turbo Blower Engine, High Speed VFD, Smart Control System, Touch Screen Control Panel and Mobile Phone Remote Control.
Turbo Blower Engine
Turbo blower engine is high speed centrifugal blower.
High Speed VFD
The developed high performance VFD for high speed permanent magnet motor is more energy-saving and high-efficient.
Smart Control System
It adopts PLC control with multiple communication method. Multiple control and monitoring is available, including the on-site, DCS remote and 4G-LTE.
Through state monitoring of logic data, built-in control program automatically detects, judges and terminates abnormal operation.
One-button start-stop control is reserved to facilitate on-site commissioning and troubleshooting under abnormal operation in time.
Touch Screen Control Panel
Simple and clear interface is easy to operate, detect and display system pressure and flow curve in real time.
Mobile Phone Remote Control
Turbo blower can be remotely monitored and controlled through mobile devices by user.
Turbo Blower Engine Technology
Turbo blower engine consist of core technology of High Speed Impeller, High Speed Motor, Magnetic Bearing, High Speed Rotor, High Speed Rotor Coil and Volute.
High Speed Impeller
Turbo blower engine adopts design concept of three-dimensional flow impeller, which improves impeller efficiency up to 95%,realizes wide operation range, and volume flow
adjustable from 45% to 100%.
High Speed Motor
Permanent magnet synchronous motor is with electromagnetic efficiency up to 98%, wide range of high efficient operation, directly-driven loading, and without transmission loss.
Magnetic Bearing
Magnetic bearing is designed for complex operating conditions like high speed, extreme temperature, large loading and strong vibration.
High Speed Rotor
Variable frequency and speed control is good for the motor rotating in maximum speed of 200000 rpm.
High Speed Rotor Coil
Class H insulation is adopted to make the motor has high reliability and durability even operating in high temperature, strong corrosion and current shock.
Volute
High efficient aerodynamic design ensure good aerodynamic performance of blade and low aerodynamic noise, which help satisfy high pressure ratio, high efficiency and large flow aerodynamic performance
Turbo Blower Advantage
High Efficiency
Turbo blower save 50% electricity bill more than traditional roots blower.
Smart Control
Turbo blower adopt touch screen control panel and mobile phone remote control. It supports multiple control methods.
Plug and Play
Turbo blower air flow and pressure is adjusted by blower rotation speed.
Easy Maintenance
Regularly replace filter cotton as per the hints. The maintenance is easy and fast with extremely low cost.
Turbo Blower Parameter Table
| Model | 37KW-40 | 37KW-80 | 55KW-80 | 75KW-40 | 75KW-80 | 90KW-80 | 110KW-40 | 110KW-80 | 110KW-120 |
| Discharge Pressure kpa | Air Flow(m3/min)，20℃，Humidity60%, 1atm | ||||||||
| 20 | 50 | / | / | 94 | / | / | 139 | / | / |
| 30 | 48 | / | / | 87 | / | / | 132 | / | / |
| 40 | 42 | / | / | 76 | / | / | 120 | / | / |
| 50 | / | 37 | 47 | / | 75 | / | / | 85 | / |
| 60 | / | 33 | 43 | / | 70 | 71 | / | 81 | / |
| 70 | / | 28 | 40 | / | 63 | 67 | / | 75 | / |
| 80 | / | / | 36 | / | 52 | 61 | / | 68 | / |
| 90 | / | / | / | / | / | / | / | 57 | / |
| 100 | / | / | / | / | / | / | / | / | 59 |
| 110 | / | / | / | / | / | / | / | / | 55 |
| 120 | / | / | / | / | / | / | / | / | 50 |
| 130 | / | / | / | / | / | / | / | / | 45 |
| Model | 150KW-40 | 150KW-80 | 150KW-120 | 220KW-40 | 220KW-80 | 220KW-120 | 300KW-80 | 300KW-120 | 350KW-100 |
| Discharge Pressure kpa | Air Flow(m3/min)，20℃，Humidity60%, 1atm | ||||||||
| 20 | 220 | / | / | 303 | / | / | / | / | / |
| 30 | 212 | / | / | 288 | / | / | / | / | / |
| 40 | 182 | / | / | 250 | / | / | 260 | / | / |
| 50 | 143 | / | / | 190 | / | / | 250 | / | 301 |
| 60 | / | 130 | / | / | 178 | / | 240 | / | 295 |
| 70 | / | 121 | / | / | 167 | / | 215 | / | 276 |
| 80 | / | 109 | / | / | 145 | / | 185 | / | 255 |
| 90 | / | 95 | / | / | 125 | / | 170 | / | 239 |
| 100 | / | / | 90 | / | / | 136 | / | 173 | 208 |
| 110 | / | / | 83 | / | / | 127 | / | 161 | 179 |
| 120 | / | / | 76 | / | / | 120 | / | 148 | / |
| 130 | / | / | 68 | / | / | 99 | / | 135 | / |
Magnetic Bearing
Magnetic bearing is designed for complex operating conditions like high speed, extreme temperature, large loading and strong vibration.
Design Simulation
To ensure the magnetic bearing performance, our self-developed simulation software do the follow simulation: magnetic field simulation, electric field simulation, multi-physics coupling simulation, mechanical stiffness and strength simulation, temperature simulation, vibration and noise simulation, rotor dynamics simulation, system simulation etc.
Test
A comprehensive magentic bearing test system has been established. Our fully-developed bearing test capability and data analysis capability can carry out performance verification for magnetic bearing and provide technical support for the test, as a result tailor-made products can be realized.
Manufacture
By complete production process flow for magnetic bearing and the perfect supply chain system, the key and core process manufacture can all be carried out by ourselves. With an annual output of 5000 sets of bearing, it realizes bearing series, batch production and supports bearing customization.
Core Technology:
-
Turbo-Blower-Engine -
Mobile-Phone-Remote-Control -
High-Speed-VFD -
Touch-Screen-Control-Panel -
Smart-Control-System -
High-Speed-Impeller -
Magnetic-Bearing -
_0000_High-speed-Motor -
High-speed-Rotor-Coil -
High-Efficient-volute -
High-speed-Rotor
